Material Testing Products
TDE Techno Design is also known with its excellent reputation and high quality products provided to the material testing, instrumentation, product testing and certification, and environmental monitoring industries. Our products include products standard to specific industries and applications as well as specific products customized to specific applications. Among the long list of standard and customized items, the following are only few key products:

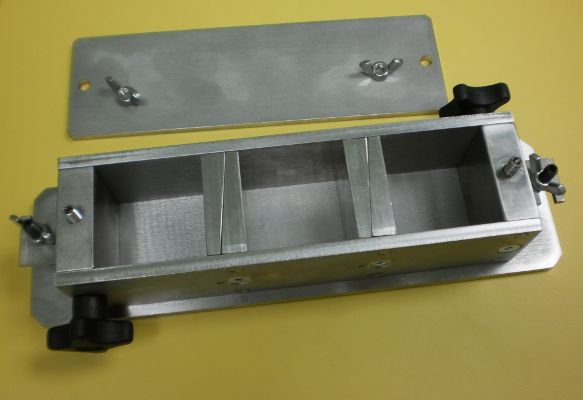

3-Gangs Cube Molds
The all stainless steel 3-gangs molds come in metric (50mmX50mmX50mm) or imperial (2"X2"X2") for long service life, and ease-of-cleaning and demolding. Used for preparing cement, gypsum and mortar compression samples as per ASTM standards (C87/C91/C109/C141/C267/C311/C472/C617/C618/C1073) and AASHTO T71/T108, our molds are used in testing laboratory all across North America. It also comes with or without top cover.
Ship Weight: 9 lb
Proportional Caliper Device
As per ASTM D4791. For coarse aggregate shape characteristics. Used to determine percentage of flat and elongated particles in coarse aggregate. Corrosion-resistance plated steal construction. Support ratios: 1:2/1:3/1:4/1:5.
Ship Weight: 5 lb
Straight Edges
As per ASTM C185/D558/D559/D560/D698 and AASHTO T137. Steel with 45° beveled edge.
Ship Weight: 1.6 lb
Asphalt Samplers (Cross sample splitter)
Meets LC26-005. Welded Aluminum Structure. Span length 650 mm, with 45° double-bevelled edges.
Ship Weight: 9 lb

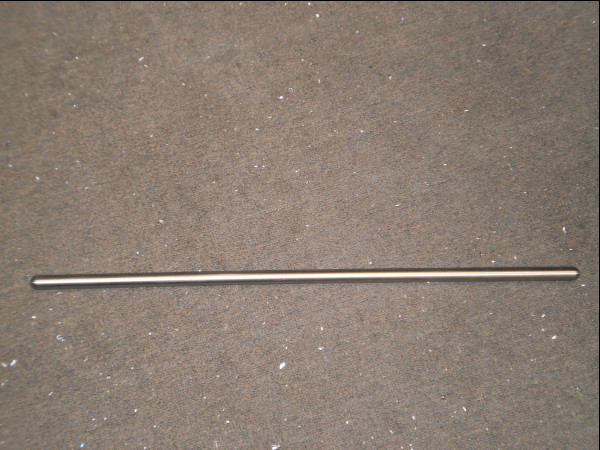

Tamping Rods
Perfectly straight stainless steel with both ends rounded to perfect hemispherical tips.
Meets ASTM C157/C192.
Metric Sizes: 10 mm X 460 mm, 16 mm X 600 mm.
Imperial Sizes: 3/8” X 18”, 5/8” X 24”.
Other sizes are available upon request.
Scraper Plates (Guide Plate for Nuclear Gauge Drill Pins)
Plated Steel Structure.
For 3/4” drill pins 13-3/8” L X 7-1/2” W X 4-1/4” H with 8-7/8” center-center spacing.
Ship Weight: 10 lb

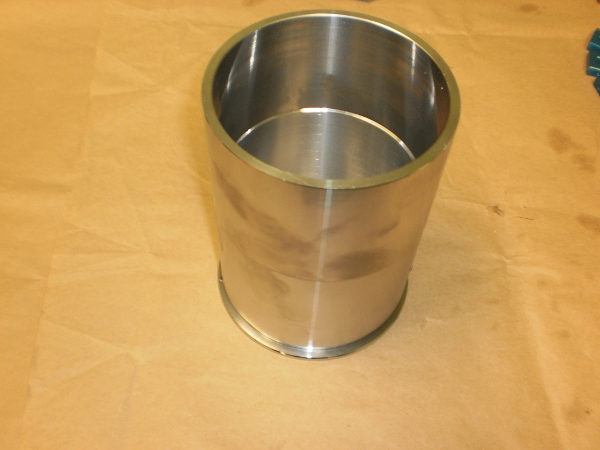

Marshall Compaction Mold (4” and 100 mm)
As per ASTM D6931/D6926, LC26-020 and AASHTO T283.
Plated Steel construction with indexing base.
Available in complete mold assembly, as well as in individual components (Top collar, middle collar, rotating mold base).
Ship Weight:
Complete Mold Assembly: 6 lb
Top Collar: 1.8 lb
Middle Collar: 2.0 lb
Mold Base: 2.2 lb
Other Products
Also, TDE Techno Design designs and manufactures a wide range of accessories for the material testing, geotechnical testing and other industry sectors, including:
- Jigs and Fixtures.
- Go-No-Go Gauges.
|
